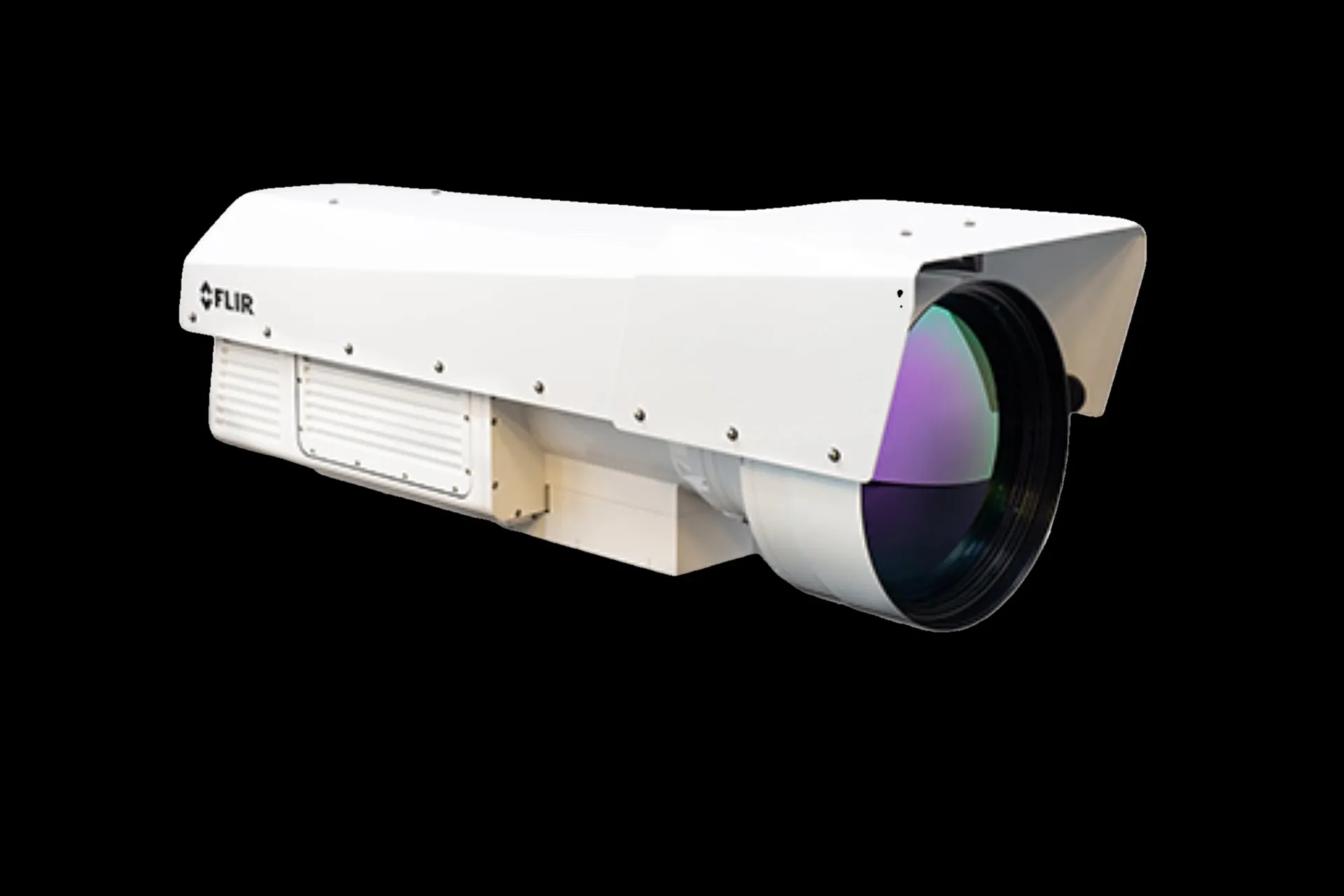

FLIR A655sc 15° Wärmebildkamera · 640 × 480 Pixel · 7.5–14 µm

<table class="ds-table"><caption>Imaging &amp; Optik</caption><tbody><tr><th>IR-Auflösung</th><td>640 × 480 Pixel</td></tr><tr><th>NETD</th><td>&lt; 0.03°C @ +30°C (+86°F) / 30 mK</td></tr><tr><th>Sichtfeld</th><td>15° × 11° (19° diagonal)</td></tr><tr><th>Mindestfokusdistanz</th><td>0.50 m (1.64 ft.)</td></tr><tr><th>Brennweite</th><td>41.3 mm (1.63 in.)</td></tr><tr><th>Räumliche Auflösung (IFOV)</th><td>0.41 mrad</td></tr><tr><th>Objektiverkennung</th><td>Automatic</td></tr><tr><th>Blendenzahl (F#)</th><td>1.0</td></tr><tr><th>Bildfrequenz</th><td>50 Hz (100/200 Hz with windowing)</td></tr><tr><th>Fokus</th><td>Automatic or manual (built in motor)</td></tr><tr><th>Detektor-Typ</th><td>Focal plane array (FPA), uncooled microbolometer</td></tr><tr><th>Spektralbereich</th><td>7.5–14 µm</td></tr><tr><th>Detektor-Pitch</th><td>17 µm</td></tr><tr><th>Detektor-Zeitkonstante</th><td>Typical 8 ms</td></tr></tbody></table>

<table class="ds-table"><caption>Messung</caption><tbody><tr><th>Messbereich</th><td>–40°C to +150°C (–40°F to +302°F) 100 to +650°C (+212 to +1202°F)</td></tr><tr><th>Genauigkeit</th><td>±2°C (±3.6°F) or ±2% of reading</td></tr><tr><th>Atmosphärenkorrektur</th><td>Automatic, based on inputs for distance, atmospheric temperature and relative humidity</td></tr><tr><th>Optik-Transmissionskorrektur</th><td>Automatic, based on signals from internal sensors</td></tr><tr><th>Emissionsgradkorrektur</th><td>Variable from 0.01 to 1.0</td></tr><tr><th>Korrektur der reflektierten Temperatur</th><td>Automatic, based on input of reflected temperature</td></tr><tr><th>Korrektur externer Optiken/Fenster</th><td>Automatic, based on input of optics/window transmission and temperature</td></tr><tr><th>Messkorrekturen</th><td>Global object parameters</td></tr></tbody></table>

<table class="ds-table"><caption>Schnittstellen &amp; Speicherung</caption><tbody><tr><th>USB</th><td>Control and image</td></tr><tr><th>USB-Standard</th><td>USB 2 HS</td></tr><tr><th>USB-Anschluss</th><td>USB Mini-B</td></tr><tr><th>USB-Kommunikation</th><td>TCP/IP socket-based FLIR proprietary</td></tr><tr><th>USB-Bildstreaming</th><td>16-bit 640 × 480 Pixel @ 25 Hz Signal linear Temperature linear Radiometric</td></tr><tr><th>USB-Protokolle</th><td>TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, ftp, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour), uPnP</td></tr><tr><th>Ethernet</th><td>Control and image</td></tr><tr><th>Ethernet-Typ</th><td>Gigabit Ethernet</td></tr><tr><th>Ethernet-Standard</th><td>IEEE 802.3</td></tr><tr><th>Ethernet-Anschluss</th><td>RJ-45</td></tr><tr><th>Ethernet-Kommunikation</th><td>TCP/IP socket-based FLIR proprietary and GenICam protocol</td></tr><tr><th>Ethernet-Bildstreaming</th><td>16-bit 640 × 480 Pixel @ 50 Hz 16-bit 640 × 240 Pixel @ 100 Hz 16-bit 640 × 120 Pixel @ 200 Hz Signal linear Temperature linear Radiometric GigE Vision and GenICam compatible</td></tr><tr><th>Ethernet-Protokolle</th><td>TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, ftp, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour), uPnP</td></tr><tr><th>Digital-Eingang Zweck</th><td>Image tag (start, stop, general), Image flow control, (stream on/off), Input ext. device (programmatically read)</td></tr><tr><th>Digital-Eingang</th><td>2 opto-isolated, 0–1.5 V = low, 3–25 V = high</td></tr><tr><th>Digital-Ausgang Zweck</th><td>Output to ext. device (programmatically set)</td></tr><tr><th>Digital-Ausgang</th><td>2 opto-isolated, ON = supply (max. 100 mA), OFF = open</td></tr><tr><th>Digital-I/O Isolationsspannung</th><td>500 VRMS</td></tr><tr><th>Digital-I/O Versorgungsspannung</th><td>6–24 VDC, max. 200 mA</td></tr><tr><th>Digital-I/O Anschluss</th><td>6-pole jackable screw terminal</td></tr></tbody></table>

<table class="ds-table"><caption>Umwelt &amp; Normen</caption><tbody><tr><th>Betriebstemperatur</th><td>–15°C to +50°C (+5°F to +122°F)</td></tr><tr><th>Lagertemperatur</th><td>–40°C to +70°C (–40°F to +158°F)</td></tr><tr><th>Luftfeuchte</th><td>IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C (+77°F to +104°F)</td></tr><tr><th>EMV</th><td>EN 61000-6-2:2001 (Immunity) EN 61000-6-3:2001 (Emission) FCC 47 CFR Part 15 Class B (Emission)</td></tr><tr><th>Schutzart</th><td>IP 30 (IEC 60529)</td></tr><tr><th>Schock</th><td>25 g (IEC 60068-2-27)</td></tr><tr><th>Vibration</th><td>2 g (IEC 60068-2-6)</td></tr><tr><th>Konformitätserklärung</th><td>See: https://support.flir.com/resources/DoC</td></tr></tbody></table>

<table class="ds-table"><caption>Mechanik &amp; Stromversorgung</caption><tbody><tr><th>Externe Stromversorgung</th><td>12/24 VDC, 24 W absolute max.</td></tr><tr><th>Stromanschluss</th><td>2-pole jackable screw terminal</td></tr><tr><th>Spannung</th><td>Allowed range 10–30 VDC</td></tr><tr><th>Gewicht</th><td>0.92 kg (2.03 lb.)</td></tr><tr><th>Abmessungen (L × B × H)</th><td>222× 73 × 75 mm (8.7 × 2.9 × 3.0 in.)</td></tr><tr><th>Abmessungen ohne Objektiv (L × B × H)</th><td>203× 73 × 75 mm (8.0 × 2.9 × 3.0 in.)</td></tr><tr><th>Stativ-Gewinde</th><td>UNC ¼&quot;-20 (on three sides)</td></tr><tr><th>Basismontage</th><td>2 × M4 thread mounting holes (on three sides)</td></tr><tr><th>Gehäuse-Material</th><td>Aluminum</td></tr><tr><th>Hinweis zu Mechanikdaten</th><td>Outline dimensional drawings and STEP files can be found at http://support.flir.com</td></tr></tbody></table>
