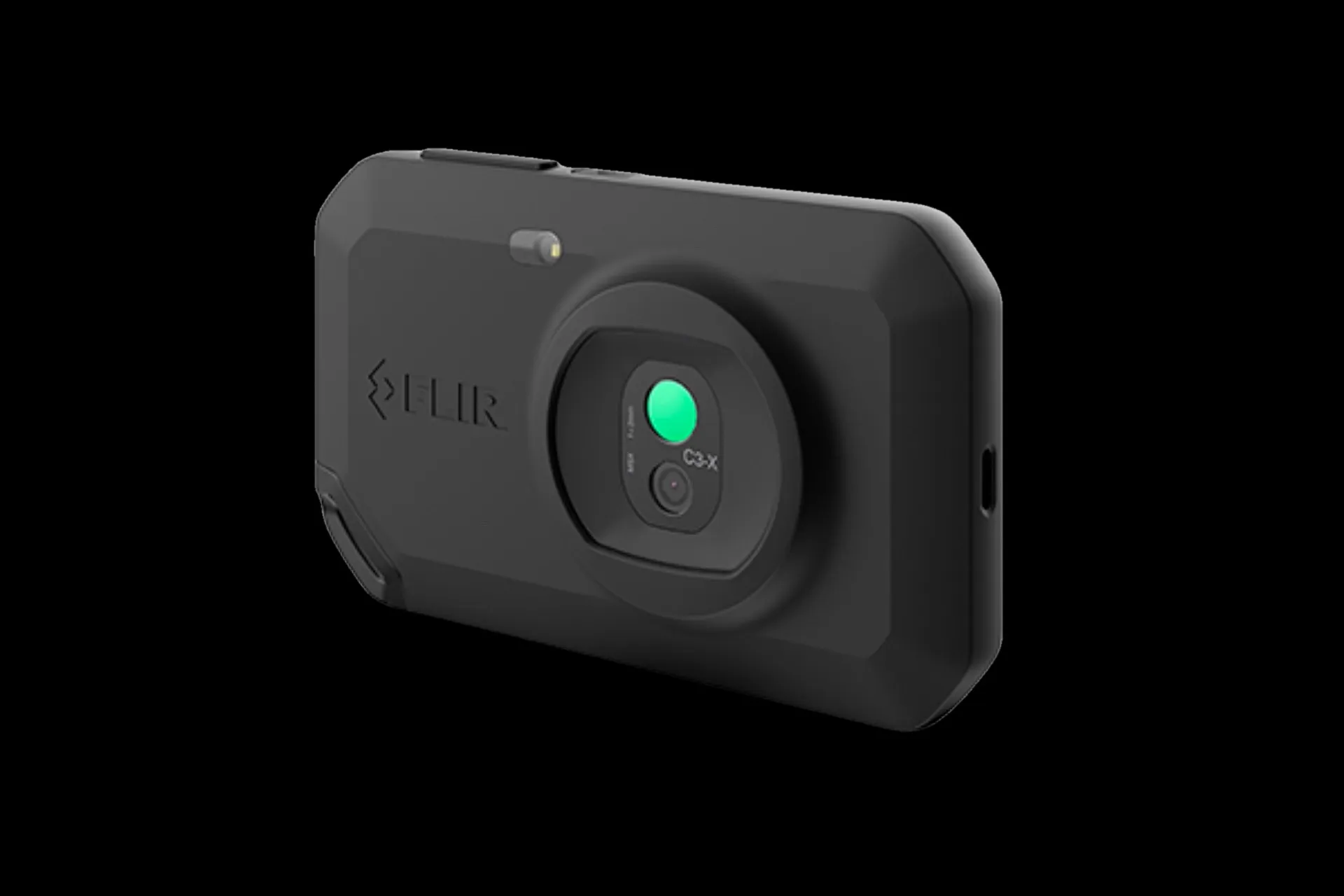

FLIR C3-X (incl. Wi-Fi) Wärmebildkamera · 128 × 96 pixels · 8–14 µm

<table class="ds-table"><caption>Imaging & Optik</caption><tbody><tr><th>IR-Auflösung</th><td>128 × 96 Pixel</td></tr><tr><th>Thermal sensitivity/NETD</th><td>&lt; 70 mK</td></tr><tr><th>Sichtfeld</th><td>54° × 42°</td></tr><tr><th>Min. Fokusabstand</th><td>Thermal: 0.1 m (0.32 ft) MSX: 0.3 m (0.98 ft)</td></tr><tr><th>IFOV</th><td>7.9 mrad/Pixel</td></tr><tr><th>Blendenzahl (F#)</th><td>1.1</td></tr><tr><th>Bildfrequenz</th><td>8.7 Hz</td></tr><tr><th>Fokus</th><td>Focus free</td></tr><tr><th>Digital zoom</th><td>Nein</td></tr><tr><th>Detektortyp</th><td>Focal plane array, uncooled microbolometer</td></tr><tr><th>Spektralbereich</th><td>8–14 µm</td></tr></tbody></table>

<table class="ds-table"><caption>Messung</caption><tbody><tr><th>Messbereich</th><td>–20 to 300°C (–4 to 572°F)</td></tr><tr><th>Accuracy at ambient temp. 10 to 35°C (50 to 95°F) and object temp. above 0°C (32°F)</th><td>0 to 100°C (32 to 212°F) : ±3°C (±5.5°F) 100 to 300°C (212 to 572°F) : ±3%</td></tr><tr><th>Measurement functions</th><td>Spot Box with max./min.</td></tr><tr><th>Measurements correction</th><td>Emissivity; matt/semi-matt/semi-glossy + custom value Reflected apparent temperature Atmospheric compensation</td></tr><tr><th>Color palettes</th><td>Iron Gray Rainbow Rainbow HC</td></tr><tr><th>Set-up commands</th><td>Local adaptation of units, language, date and time formats Screen brightness (high, medium, low)</td></tr><tr><th>Languages</th><td>Arabic, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Spanish, Swedish, traditional Chinese, Turkish</td></tr><tr><th>Software-Update</th><td>Automatic over Wi-Fi USB via computer</td></tr></tbody></table>

<table class="ds-table"><caption>Display & Bedienung</caption><tbody><tr><th>Display resolution</th><td>640 × 480 Pixel</td></tr><tr><th>Display-Größe</th><td>3.5 in</td></tr><tr><th>Seitenverhältnis</th><td>4:3</td></tr><tr><th>Auto orientation</th><td>Ja</td></tr><tr><th>Touch screen</th><td>Ja, capacitive</td></tr><tr><th>Display-Technologie</th><td>IPS</td></tr><tr><th>Bildanpassung</th><td>Automatic level and span Manual level and span</td></tr><tr><th>Image modes</th><td>Infrared image Visual image MSX Picture in picture (IR area on visual image)</td></tr><tr><th>Galerie</th><td>Ja, incl. thumbnails and custom folder structure</td></tr></tbody></table>

<table class="ds-table"><caption>Visuelle Kamera</caption><tbody><tr><th>Auflösung</th><td>5 MP</td></tr><tr><th>Fokus</th><td>Fixed</td></tr><tr><th>Sichtfeld</th><td>71.5 ° × 56° (84° diagonal)</td></tr><tr><th>Video lamp</th><td>Ja</td></tr></tbody></table>

<table class="ds-table"><caption>Schnittstellen</caption><tbody><tr><th>Speichermedium</th><td>Built-in</td></tr><tr><th>Speicherkapazität</th><td>&gt; 5000 sets of images</td></tr><tr><th>Bildformat</th><td>Standard JPEG, 14-bit measurement data included</td></tr><tr><th>Text</th><td>Soft keyboard on touchscreen</td></tr><tr><th>Non-radiometric video streaming</th><td>Nein</td></tr><tr><th>Wi-Fi</th><td>802.11 a/ac/b/g/n (2.4 and 5 GHz) (5 GHz only for indoor use in Japan and Canada)</td></tr><tr><th>USB</th><td>USB 2.0, Type-C connector</td></tr><tr><th>Bluetooth</th><td>PAN</td></tr><tr><th>Bluetooth + EDR</th><td>Frequency range: 2400–2484 MHz Max. output power: 10 dBm</td></tr></tbody></table>

<table class="ds-table"><caption>Umwelt & Sicherheit</caption><tbody><tr><th>Betriebstemperatur</th><td>–10 to 50°C (14 to 122°F)</td></tr><tr><th>Lagertemperatur</th><td>–40 to 70°C (–40 to 158°F)</td></tr><tr><th>Luftfeuchte</th><td>IEC 60068-2-30/24 h 95% relative humidity 25°C to 40°C (77°F to 104°F) / 2 cycles</td></tr><tr><th>Relative humidity</th><td>95% relative humidity 25°C to 40°C (77°F to 104°F) non-condensing</td></tr><tr><th>EMV</th><td>EN 301 487-1 EN 301 489-17 FCC 47 CFR Part 15 Class B</td></tr><tr><th>Magnetic fields</th><td>EN 61000-4-8 level 5</td></tr><tr><th>Funkstandards</th><td>ETSI EN 300 328 EN 301 489 FCC Title 47 CFR Part 15 RSS-247 Issue 2</td></tr><tr><th>Battery regulations</th><td>UL 1642 EN 62133 ed 2</td></tr><tr><th>Battery charging efficiency</th><td>BC Title 20 10 CFR Section 430.23 (aa)</td></tr><tr><th>Schutzart</th><td>Camera housing and lens: IP 54 (IEC 60529)</td></tr><tr><th>Schock</th><td>25 g (IEC 60068-2-27)</td></tr><tr><th>Vibration</th><td>2 g (IEC 60068-2-6)</td></tr><tr><th>Fallhöhe</th><td>Designed for 2 m (6.56 ft)</td></tr><tr><th>Sicherheits-Normen</th><td>EN 62368-1</td></tr><tr><th>Environmental safety</th><td>REACH Regulation EC 1907/2006 RoHS2 Directive 2011/65/EC WEEE Directive 2012/19/EC Proposition 65</td></tr><tr><th>Konformität</th><td>See: https://support.flir.com/resources/DoC</td></tr></tbody></table>

<table class="ds-table"><caption>Mechanik & Strom</caption><tbody><tr><th>Akku-Typ</th><td>Rechargeable Li ion battery (built-in)</td></tr><tr><th>Akku-Spannung</th><td>3.7 V</td></tr><tr><th>Battery capacity</th><td>1800 mAh</td></tr><tr><th>Akku-Laufzeit</th><td>4 hours</td></tr><tr><th>Battery charge life</th><td>&gt;500 cycles</td></tr><tr><th>Ladesystem</th><td>USB-C (1 A)</td></tr><tr><th>Ladedauer</th><td>2 hours</td></tr><tr><th>Lade-Temperatur</th><td>35°C (95°F)</td></tr><tr><th>Externe Stromversorgung</th><td>5 V, USB-C</td></tr><tr><th>Power-Management</th><td>Adjustable stand-by and automatic shut-down</td></tr><tr><th>Battery documents</th><td>For documents like MSDS and UN38.3 test reports/summaries, see: https://support.flir.com/resources/msds</td></tr><tr><th>Gewicht (inkl. Akku)</th><td>0.19 kg (0.42 lb)</td></tr><tr><th>Maße (L × B × H)</th><td>138 × 84 × 24 mm (5.4 × 3.3 × 0.94 in)</td></tr><tr><th>Akku-Gewicht</th><td>40 g (1.4 oz)</td></tr><tr><th>Stativ-Gewinde</th><td>UNC ¼″-20</td></tr><tr><th>Gehäuse-Material</th><td>PC and ABS, partially covered with TPE Aluminum</td></tr><tr><th>Farbe</th><td>Black</td></tr></tbody></table>
