Cx-Serie

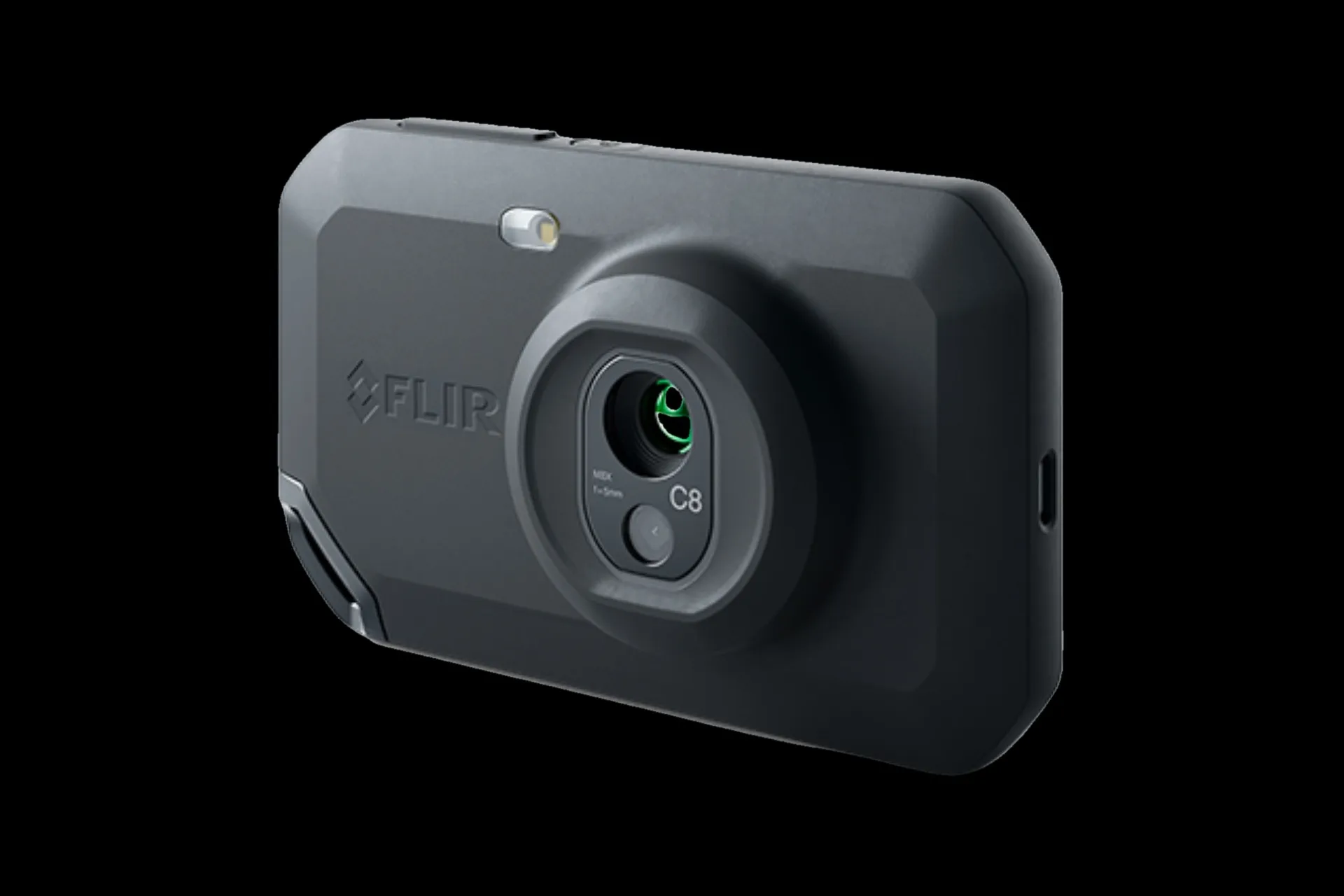

FLIR C8 Wärmebildkamera · 320 × 240 Pixel · 7.5–13 µm

Name: FLIR C8
Brand: FLIR
Price: 1 EUR
Availability: InStoreOnly

Als kompaktes Topmodell der Cx-Serie richtet sich die FLIR C8 an Handwerker, Gebäudetechniker und Instandhalter, die ein taschentaugliches Gerät mit belastbarer Auflösung brauchen. Der 320 × 240 Pixel Detektor, < 50 mK NETD und ein 35° × 27° Sichtfeld reichen für Feuchteortung, Schaltschrankchecks und mechanische Erstdiagnosen. Touchscreen, MSX und FLIR-Ignite-Speicherung erleichtern die schnelle Dokumentation direkt am Einsatzort.

Technische Daten

Alle Specs auf einen Blick.

Vollständige Spezifikation der FLIR C8.

Im Lieferumfang

<table class="ds-table"><caption>Lieferumfang</caption><tbody><tr><th>Verpackung</th><td>Cardboard box</td></tr><tr><th>Lieferumfang</th><td>FLIR C8 Printed documentation Wrist strap lanyard USB cable Pouch</td></tr><tr><th>Verpackungsgewicht</th><td>0.52 kg (1.14 lb)</td></tr><tr><th>Verpackungsgröße</th><td>160 × 118 × 93 mm (6.3 × 4.6 × 3.7 in)</td></tr><tr><th>EAN-13</th><td>4743254007727</td></tr><tr><th>UPC-12</th><td>845188033576</td></tr><tr><th>Ursprungsland</th><td>Estonia</td></tr></tbody></table>

Bildgebung und Optik

<table class="ds-table"><caption>Imaging & Optik</caption><tbody><tr><th>IR-Auflösung</th><td>320 × 240 Pixel</td></tr><tr><th>NETD</th><td>< 50 mK</td></tr><tr><th>Sichtfeld</th><td>35° × 27°</td></tr><tr><th>Mindestfokusabstand</th><td>0.4 m (1.3 ft)</td></tr><tr><th>Räumliche Auflösung (IFOV)</th><td>2.0 mrad/pixel</td></tr><tr><th>Blendenzahl (F#)</th><td>1.4</td></tr><tr><th>Bildfrequenz</th><td>9 Hz</td></tr><tr><th>Fokus</th><td>Focus free</td></tr><tr><th>Digitalzoom</th><td>Ja, zoom pinch, 1–4× continuous</td></tr><tr><th>Detektor-Typ</th><td>Focal plane array, uncooled microbolometer</td></tr><tr><th>Spektralbereich</th><td>7.5–13 µm</td></tr><tr><th>Detektor-Pitch</th><td>12 μm</td></tr></tbody></table>

Messfunktionen

<table class="ds-table"><caption>Messung</caption><tbody><tr><th>Messbereich</th><td>–20 to 450°C (–4 to 842°F)</td></tr><tr><th>Genauigkeit</th><td>0 to 100°C (32 to 212°F): ±2°C (±5.5°F) 100 to 450°C (212 to 842°F): ±2%</td></tr><tr><th>Messfunktionen</th><td>Spot Box with max./min. Isotherm</td></tr><tr><th>Messkorrekturen</th><td>Emissivity; matt/semi-matt/semi-glossy + custom value Reflected apparent temperature Atmospheric compensation</td></tr><tr><th>Farbpaletten</th><td>Iron Gray Rainbow Arctic Lava Rainbow HC</td></tr><tr><th>Einstelloptionen</th><td>Local adaptation of units, language, date and time formats Screen brightness (high, medium, low)</td></tr><tr><th>Sprachen</th><td>Arabic, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Spanish, Swedish, traditional Chinese, Turkish</td></tr><tr><th>Software-Update</th><td>Automatic over Wi-Fi USB via computer</td></tr></tbody></table>

Anzeige und Bedienung

<table class="ds-table"><caption>Display & Bedienung</caption><tbody><tr><th>Display-Auflösung</th><td>640 × 480 Pixel</td></tr><tr><th>Display-Größe</th><td>3.5 in</td></tr><tr><th>Seitenverhältnis</th><td>4:3</td></tr><tr><th>Automatische Ausrichtung</th><td>Ja</td></tr><tr><th>Touchscreen</th><td>Ja, capacitive</td></tr><tr><th>Display-Technologie</th><td>IPS</td></tr><tr><th>Bildanpassung</th><td>Automatic level and span Manual level and span 1-Touch level and span</td></tr><tr><th>Bildmodi</th><td>Infrared image Visual image MSX Picture in picture (IR area on visual image)</td></tr><tr><th>Galerie</th><td>Ja, incl. thumbnails and custom folder structure</td></tr></tbody></table>

Tageslichtkamera

<table class="ds-table"><caption>Visuelle Kamera</caption><tbody><tr><th>Digitalkamera-Auflösung</th><td>5 MP</td></tr><tr><th>Fokus</th><td>Fixed</td></tr><tr><th>Digitalkamera-Sichtfeld</th><td>71.5 ° × 56° (84° diagonal)</td></tr><tr><th>LED-Leuchte</th><td>Ja</td></tr></tbody></table>

Konnektivität und Schnittstellen

<table class="ds-table"><caption>Schnittstellen & Speicherung</caption><tbody><tr><th>WLAN</th><td>802.11 a/b/g/n (2.4 and 5 GHz)</td></tr><tr><th>USB</th><td>USB 2.0, Type-C connector</td></tr><tr><th>Bluetooth</th><td>Bluetooth v. 5.0 EDR PAN</td></tr><tr><th>Betriebsfrequenz</th><td>Bluetooth: 2402–2480 MHz WLAN 2.4 GHz: 2412–2462 MHz WLAN 5 GHz: 5150-5250 MHz Note that frequency band 5150-5250 MHz is for indoor use only, see national regulations (e.g. Japan and Canada)</td></tr><tr><th>Speichermedien</th><td>Internal memory and onboard FLIR Ignite cloud connectivity with Wi-Fi.</td></tr><tr><th>Bildspeicherkapazität</th><td>> 5000 sets of images</td></tr><tr><th>Dateiformat</th><td>Standard JPEG, 14-bit measurement data included</td></tr><tr><th>Textnotiz</th><td>Soft keyboard on touchscreen, auto-prompt for note when image is saved</td></tr><tr><th>Nicht-radiometrisches Video-Streaming</th><td>Ja; MSX, Thermal, Visual, Picture in Picture. USB Video Class colorized uncompressed with overlay 9 Hz.</td></tr></tbody></table>

Umgebungsbedingungen

<table class="ds-table"><caption>Umwelt & Normen</caption><tbody><tr><th>Betriebstemperatur</th><td>–10 to 50°C (14 to 122°F)</td></tr><tr><th>Lagertemperatur</th><td>–40 to 70°C (–40 to 158°F)</td></tr><tr><th>Luftfeuchte</th><td>IEC 60068-2-30/24 h 95% relative humidity 25°C to 40°C (77°F to 104°F) / 2 cycles</td></tr><tr><th>Relative Luftfeuchte</th><td>95% relative humidity 25°C to 40°C (77°F to 104°F) non-condensing</td></tr><tr><th>EMC</th><td>EN 301 489-1 RED EN 301 489-17 FCC 47 CFR Part 15 B, Class B</td></tr><tr><th>Magnetfelder</th><td>EN 61000-4-8 level 5</td></tr><tr><th>Funkspektrum</th><td>ETSI EN 300 328 EN 301 893 FCC Title 47 CFR Part 15 RSS-247</td></tr><tr><th>Akku-Normen</th><td>UL 1642 EN 62133 ed 2</td></tr><tr><th>Ladeeffizienz</th><td>BC Title 20 10 CFR Section 430.23 (aa)</td></tr><tr><th>Schutzart</th><td>Camera housing and lens: IP 54 (IEC 60529)</td></tr><tr><th>Stoßfestigkeit</th><td>25 g (IEC 60068-2-27)</td></tr><tr><th>Vibration</th><td>2 g (IEC 60068-2-6)</td></tr><tr><th>Fallhöhe</th><td>Designed for 2 m (6.56 ft)</td></tr><tr><th>Sicherheits-Normen</th><td>EN 62368-1</td></tr><tr><th>Environmental safety</th><td>REACH Regulation EC 1907/2006 RoHS2 Directive 2011/65/EC WEEE Directive 2012/19/EC Proposition 65</td></tr><tr><th>Declaration of conformity</th><td>See: https://support.flir.com/resources/DoC</td></tr></tbody></table>

Mechanik und Stromversorgung

<table class="ds-table"><caption>Mechanik & Stromversorgung</caption><tbody><tr><th>Gewicht</th><td>0.20 kg (0.42 lb)</td></tr><tr><th>Abmessungen (L × B × H)</th><td>138 × 84 × 34 mm (5.4 × 3.3 × 1.3 in)</td></tr><tr><th>Akku-Gewicht</th><td>40 g (1.4 oz)</td></tr><tr><th>Stativ-Gewinde</th><td>UNC ¼″-20</td></tr><tr><th>Gehäuse-Material</th><td>PC and ABS, partially covered with TPE Aluminum</td></tr><tr><th>Farbe</th><td>Black</td></tr><tr><th>Akku-Typ</th><td>Rechargeable Li ion battery (built-in)</td></tr><tr><th>Akku-Spannung</th><td>3.7 V</td></tr><tr><th>Akku-Kapazität</th><td>1800 mAh</td></tr><tr><th>Akku-Laufzeit</th><td>3 hours</td></tr><tr><th>Akku-Lebensdauer</th><td>>500 cycles</td></tr><tr><th>Ladesystem</th><td>USB-C (1 A)</td></tr><tr><th>Ladezeit</th><td>2 hours</td></tr><tr><th>Ladetemperatur</th><td>35°C (95°F)</td></tr><tr><th>Externe Stromversorgung</th><td>5 V, USB-C</td></tr><tr><th>Energiemanagement</th><td>Adjustable stand-by and automatic shut-down</td></tr><tr><th>Akku-Dokumente</th><td>For documents like MSDS and UN38.3 test reports/summaries, see: https://support.flir.com/resources/msds</td></tr></tbody></table>
