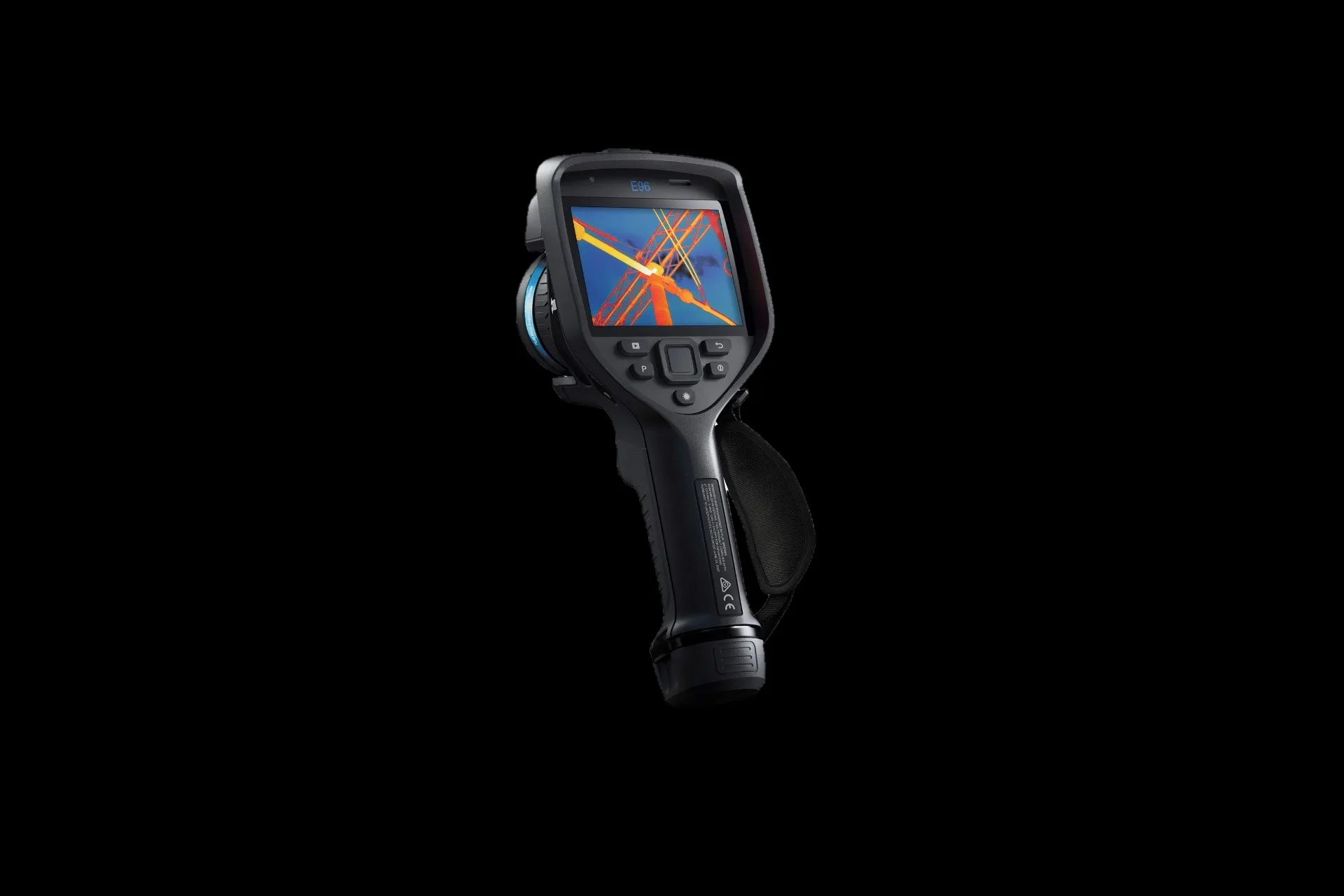

FLIR E5 Pro Wärmebildkamera · 160 × 120 Pixel · 7.5–13 µm

<table class="ds-table"><caption>Imaging &amp; Optik</caption><tbody><tr><th>IR-Auflösung</th><td>160 × 120 Pixel</td></tr><tr><th>NETD</th><td>&lt;0.06°C (0.11°F) / &lt;60 mK at 30°C (86°F)</td></tr><tr><th>Sichtfeld</th><td>33° × 25</td></tr><tr><th>Mindestfokusabstand</th><td>0.36 m (1.18 ft.)</td></tr><tr><th>Räumliche Auflösung (IFOV)</th><td>3.7 mrad</td></tr><tr><th>Blendenzahl (F#)</th><td>1.4</td></tr><tr><th>Bildfrequenz</th><td>9 Hz</td></tr><tr><th>Fokus</th><td>Fixed focus</td></tr><tr><th>Detektor-Typ</th><td>Focal plane array (FPA), uncooled microbolometer</td></tr><tr><th>Spektralbereich</th><td>7.5–13 µm</td></tr></tbody></table>

<table class="ds-table"><caption>Messung</caption><tbody><tr><th>Camera temperature range</th><td>–20 to 200°C (–4 to 392°F) 10 to 400°C (50 to 752°F)</td></tr><tr><th>Object temperature range and accuracy (for ambient temp. 10 to 35°C (50 to 95°F) and object temp. above 0°C (32°F) )</th><td>Range –20 to 200°C (–4 to 392°F) : 0 to 100°C (32 to 212°F) : ±2°C (±3.6°F) 100 to 200°C (212 to 392°F) : ±2% Range 10 to 400°C (50 to 752°F) : 10 to 100°C (50 to 212°F) : ±2°C (±7.2°F) 100 to 400°C (212 to 752°F) : ±2%</td></tr><tr><th>Spotmeter</th><td>Center spot, box with min./max.</td></tr><tr><th>Isotherme</th><td>Above alarm, Below alarm</td></tr><tr><th>Delta T</th><td>Ja, NFPA 70B compliant</td></tr><tr><th>Emissivity correction</th><td>Variable from 0.1 to 1.0</td></tr><tr><th>Emissivity table</th><td>Emissivity table of predefined materials</td></tr><tr><th>Measurements correction</th><td>Emissivity, matt/semi-matt/semi-gloss + custom value, reflected apparent temperature, atmospheric compensation</td></tr><tr><th>Farbpaletten</th><td>Iron, White hot, Black hot, Rainbow, Arctic, Lava, Rainbow HC</td></tr><tr><th>Set-up commands</th><td>Local adaptation of units, language, date and time formats</td></tr></tbody></table>

<table class="ds-table"><caption>Display &amp; Bedienung</caption><tbody><tr><th>Display</th><td>3.5 in. 640 × 480 color LCD</td></tr><tr><th>Touch screen</th><td>Capacitive touch</td></tr><tr><th>Text</th><td>Text annotation on image using onscreen keyboard</td></tr><tr><th>Flashlight</th><td>Manually activated bright LED</td></tr><tr><th>Display</th><td>3.5 in. 640 × 480 color LCD</td></tr><tr><th>Image adjustment</th><td>Automatic/Manual</td></tr><tr><th>Bildmodi</th><td>Thermal MSX , Thermal, Picture-in-Picture, Digital camera.</td></tr><tr><th>Multi Spectral Dynamic Imaging ( MSX )</th><td>IR image enhanced with visible camera detail</td></tr><tr><th>Picture in Picture</th><td>IR area on visual image</td></tr></tbody></table>

<table class="ds-table"><caption>Visuelle Kamera</caption><tbody><tr><th>Digitalkamera-Auflösung</th><td>5 MP</td></tr><tr><th>Digitalkamera-Sichtfeld</th><td>52.7°</td></tr></tbody></table>

<table class="ds-table"><caption>Schnittstellen &amp; Speicherung</caption><tbody><tr><th>Dateiformate</th><td>Standard JPEG, 14-bit measurement data included</td></tr><tr><th>Storage media</th><td>Internal memory and onboard FLIR Ignite cloud connectivity (with Wi-Fi)</td></tr><tr><th>Radiometric IR video streaming</th><td>Ja, USB connection</td></tr><tr><th>Non-radiometric video streaming</th><td>Ja; MSX, Thermal, Visual, Picture in Picture. USB Video Class colorized uncompressed with overlay 9 Hz.</td></tr><tr><th>Schnittstellen</th><td>USB-C: Data transfer to and from PC and Mac device</td></tr><tr><th>WLAN</th><td>Infrastructure (network)</td></tr><tr><th>WLAN</th><td>Standard: 802.11 a/b/g/n Frequency range: 2400–2473 MHz 5150–5250 MHz Max. output power: 16 dBm</td></tr></tbody></table>

<table class="ds-table"><caption>Umwelt &amp; Normen</caption><tbody><tr><th>Betriebstemperatur</th><td>–15°C to +50°C (+5°F to +122°F)</td></tr><tr><th>Lagertemperatur</th><td>–40°C to +70°C (–40°F to +158°F)</td></tr><tr><th>Luftfeuchte</th><td>IEC 60068-2-30/24 h 95% relative humidity</td></tr><tr><th>EMC</th><td>EN 301 489-1 EN 301 489-17 EN 61000-6-2 (Immunity) EN 61000-6-3 FCC 47 CFR Part 15 Class B (Emission)</td></tr><tr><th>Radio spectrum</th><td>ETSI EN 300 328 ETSI EN 301 893 FCC 47 CFR Part 15 C, E RSS-247 Issue 2</td></tr><tr><th>Hazardous substances</th><td>WEEE 2012/19/EU RoHs 2011/65/EU</td></tr><tr><th>Shock</th><td>25 g (IEC 60068-2-27)</td></tr><tr><th>Vibration</th><td>2 g (IEC 60068-2-6)</td></tr><tr><th>Sicherheits-Normen</th><td>Camera: IEC/EN 62368-1 Power supply: IEC/EN 62368-1 UL/J/(AS/NZS) 62368-1 GB 4943</td></tr><tr><th>Declaration of conformity</th><td>See: https://support.flir.com/resources/DoC</td></tr></tbody></table>

<table class="ds-table"><caption>Mechanik &amp; Stromversorgung</caption><tbody><tr><th>Akku-Typ</th><td>Rechargeable Lithium-ion battery</td></tr><tr><th>Battery voltage</th><td>3.65 V</td></tr><tr><th>Akku-Laufzeit</th><td>4 hours at +25°C (+77°F) ambient temperature and typical use</td></tr><tr><th>Ladesystem</th><td>Battery is charged inside the camera or in specific charger.</td></tr><tr><th>Charging time</th><td>2 hours in charger. 4 hours to 90% capacity in camera.</td></tr><tr><th>Energiemanagement</th><td>Automatic shut-down</td></tr><tr><th>AC operation</th><td>AC adapter, 100–240 VAC input, 5 VDC output to camera</td></tr><tr><th>Battery documents</th><td>For documents like MSDS and UN38.3 test reports/summaries, see: https://support.flir.com/resources/msds</td></tr><tr><th>Camera weight, incl. battery</th><td>0.610 kg (1.34 lb.)</td></tr><tr><th>Camera size (L × W × H)</th><td>244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in.)</td></tr><tr><th>Color</th><td>Black</td></tr></tbody></table>
